AgieCharmilles CUT 1000

EDM Wire Cut Machine – Top End Accuracy

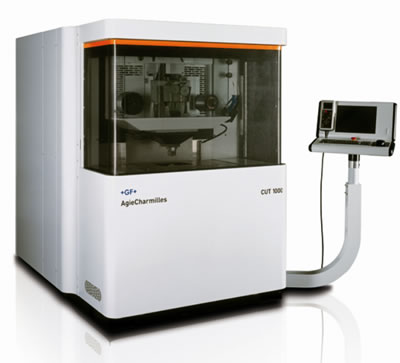

AgieCharmilles CUT 1000

GF Machining Solutions’ new AgieCharmilles CUT 1000, specifically designed to meet these demands, offers unique features in terms of precision and productivity, and perfect predictability and repeatability of machining results. This wire cut machine is a benchmark in micro erosion.







Main Specs:

  • Travels (X,Y,Z):  8.661″ x 6.299″ x 3.937″
  • Workpiece Dimensions (W, D, H):  11.811″ x 7.874″ x 3.15″



CUT 1000 designed for outstanding accuracy

Due to an exclusive machine design concept, the AgieCharmilles CUT 1000 meets highly demanding requirements in terms of positioning accuracy, shape and detail accuracy. These results are possible thanks to the development of an innovative machine tool design based on a monoblock framework with separated X and Y axes, and through the static and dynamic analysis of the behavior of the machine tool with the Finite Element Method.











AgieCharmilles CUT 1000 Machine Specifications



Travels (X,Y,Z) 8.661″ x 6.299″ x 3.937″
Max. Workpiece Dimensions 11.811″ x 7.874″ x 3.15″
Max. Electrode Weight 77.16 lbs
U, V Travel ± 1.575″
Taper Angle Height 3º / 3.15º in
