AgieCharmilles CUT E600
2493
portfolio_page-template-default,single,single-portfolio_page,postid-2493,qode-quick-links-1.0,ajax_fade,page_not_loaded,,qode-title-hidden,qode_grid_1300,footer_responsive_adv,hide_top_bar_on_mobile_header,qode-content-sidebar-responsive,transparent_content,qode-theme-ver-14.1,qode-theme-bridge,wpb-js-composer js-comp-ver-5.4.7,vc_responsive

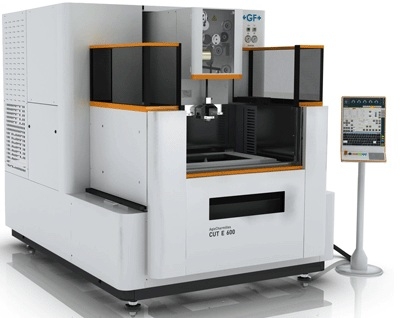

AgieCharmilles CUT E600

EDM Wire Cut Machine – General Purpose

AgieCharmilles CUT E series

High level of flexibility and low running cost, the ideal machines for any EDM work shop



The AgieCharmilles CUT E 350/AgieCharmilles CUT E 600 range puts efficiency at the touch of your finger with a smart, easy-to-use human-machine interface (HMI) and onboard technologies that streamline your job setup, improve your cutting speed, improve your surface finish, protect your valuable workpieces, and ensure your process robustness.



Main Specs:

  • Travels (X,Y,Z):  23.622″ x 15.748″ x 13.78″
  • Workpiece Dimensions (W, D, H):  40.551″ x 31.496″ x 13.583″



New Design Advances Your Efficiency

Power Your Performance – Your business performance is powered by machine performance, and our Intelligent Power Generator (IPG) boasts wide range expert technologies help you achieve the surface quality and precision your discerning customers demand.



Accelerate Your Productivity – Time saved is money earned. Onboard speed technology package puts you on the fast track to provide excellent performance at an affordable price.



Benefit From Our Expertise – You benefit from GF Machining solutions’ legacy of more than 60 years of EDM expertise. Our first and unique worldwide intelligent collision protection system (ICP) detects even the slightest abnormal forces and halts X, Y or Z axis movement in time to avoid damages and related costs.



Experience Innovation – You’re just one click away from machining perfect punches, dies, molds and parts, thanks to our intelligent, intuitive AC CUT HMI. Included are powerful tools for fast, safe machining preparation to make your machine programmer’s life easier.







AgieCharmilles CUT E600 Machine Specifications



Travels (X,Y,Z) 23.622″ x 15.748″ x 13.78″
Travels (U,V) ± 1.969″
Taper Angle Height 30°/2.2º/in
Workpiece Dimensions (W,D,H) 40.551″ x 31.496″ x 13.583″
Max. Workpiece Weight 2,204.6 lbs
Available Wire Diameters (Standard) 0.006″ – 0.012″
Permissible Weights and Types of Spools (ISO) 17.64 / 55.12 lbs
