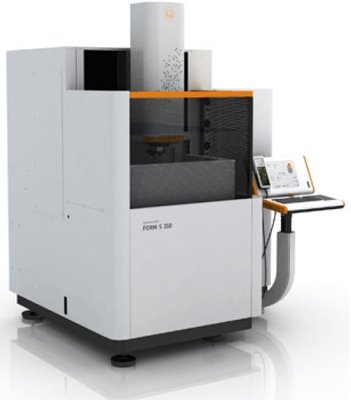

AgieCharmilles FORM S350

EDM Die-Sinking Machine – Performance Micro Machining

AgieCharmilles FORM S series

Break through into the world of micro-profiles



Easily—and with extreme repeatability—deliver the perfect machining accuracy your ICT and automotive customers demand. Meeting their stringent quality requirements for electronic components is a snap, thanks to the high-precision AgieCharmillesFORM S 350 sinker EDM solution. Exceed your customers’ expectations and profit from its state-of the art design with onboard power generation system, accuracy-enhancing stability and thermostabilization, and productivity-boosting machining quality.



Main Specs:

  • Travels (X,Y,Z):  13.78″ x 9.843″ x 11.811″
  • Workpiece Dimensions (W, D, H):  31.102″ x 20.866″ x 13.78″



Features

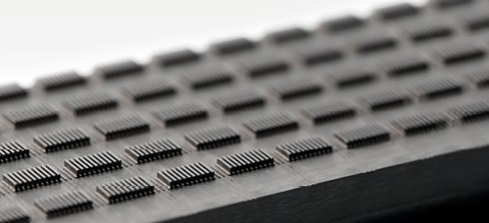

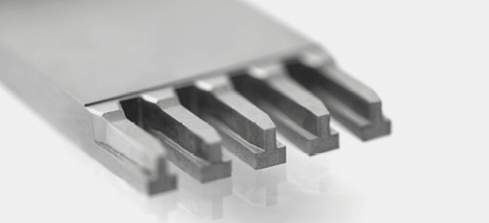

Ready for Micromachining

With this sinker solution’s new discharge circuit for spark erosion power modulation and the flexibility to maximize material removal, you can reach unprecedented levels of quality and efficiency. Finishing details are achieved by reducing the spark gap to just a few microns.



Perfect Machining Conditions for Higher Details

Workshop temperature fluctuation will never impact your part machining precision, thanks to this die-sinking electrical discharge machining (EDM) solution’s dual thermostabilization system. It is a major innovation when working close to micron dimensions.







  • Part Weight
    Experience superior mechanical stability and precision across the life of the die-sinking EDM machine, thanks to its short C axis construction and oversize cast iron frame. As a result, your accuracy is uncompromised by part weight or dielectric volume and your precision is further advanced.
  • Position resolution
    To obtain reliable positioning accuracy, only linear glass scales are effective. They eliminate all the classic errors, such as backlash, expansion and wear effects. The axis servo control system developed by GF Machining Solutions for die-sinking EDM machines is a closed loop measurement solution designed to provide infallible accuracy, whatever the travel.
  • Perfect surfaces, for you
    Get a flexible tool guaranteeing desired surface texture in die sinking electrical discharge machining with our 3DS technology. It saves maintenance costs by minimizing residue accumulation on molds and reducing friction and ejection forces, so you get higher productivity and flexibility, greater end product quality, more process repeatability, and homogeneity of granularity.
  • Graphite wear
    GF Machining Solutions’ iQ (innovation + Quality) and iGap (intelligent gap, achieving a smaller, therefore more precise, side gap at higher speed) innovations help overcome these disadvantages by enabling machining with virtually zero wear when using graphite electrodes.

  • Reach unprecedented levels of quality
    Ramp up your efficiency and quality, thanks to this die sinker’s new discharge circuit allowing spark erosion power modulation and the flexibility to maximize material removal. Achieve greater finishing detail by reducing the gap to a few microns. You’ll achieve higher machining yields while preserving electrode geometry, due to an extremely low rate of electrode wear.
  • Boost manufacturing efficiency
    Thank to the ISPG generator micromachining module, the AgieCharmilles FORM S 350 die-sinking EDM solution process combining profile accuracy and productivity, always maintaining highest accuracy and perfect details.

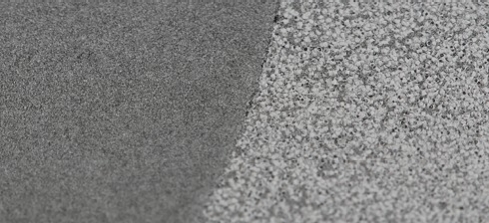

  • 3DS mold surface texturing
    With 3DS, your surfaces are qualified in both crater height and width and the craters left by die-sinking EDM are perfectly controlled. You achieve a structure so smooth and uniform that it cannot be seen by the human eye. This technology dramatically reduces plastic adherence towards mold inserts, maximizes plastic part demolding efficiency and reduces plastic injection cycle time.
  • Accuracy, the best high-performance axis on the market

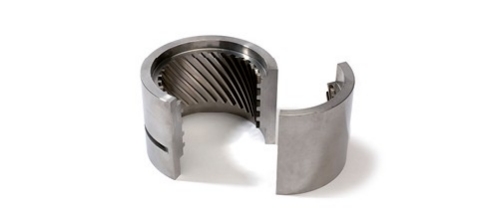

    A rugged C axis delivers high positioning precision regardless of electrode weight (up to 25 kg) and full machine current. Completely integrated, the C axis is easily extended to increase X and Y travels when machining very large parts. Integrated into the quil of the Z axis, the AgieCharmilles S series’ C axis is incredibly flexible, producing perfect curved recesses and undercuts.



AgieCharmilles FORM S350 Machine Specifications



 Travels
Axis (X,Y,Z) 13.78″ x 9.843″ x 11.811″
Machine Dimensions
Width, Depth, Height 74.803″ x 66.535″ x 104.33″
Machine Weight  6,172.88 lbs

 Performance
Min. Surface Roughness (Ra) 0.315 µin
Workpiece and Electrode
Workpiece Dimensions (W,D,H) 31.102″ x 20.866″ x 13.78″
Max. Electrode Weight 110.23 lbs
Max. Workpiece Weight 1,102.3 lbs
Bath Level 3.937″ – 12.795″

 Dielectric System
Reservoir Capacity 108.31 gal
Number of Filter Elements 4
Generator
Standard Machining Current 80 (140) A
Type ISPG Integrated
