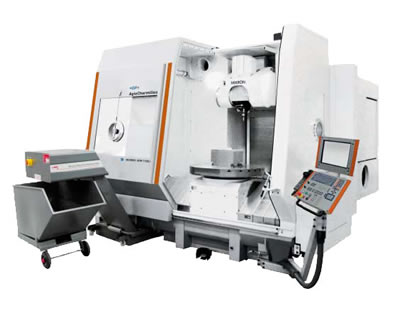

Mikron HPM 1150U

Vertical Machining Center – 5-Axis High Performance

High performance milling versus high speed milling – the one cannot replace the other! While with high speed milling the objective is to create as much surface on the workpiece as possible in the shortest possible time, the objective of high performance milling is to remove as much material as possible as efficiently as possible.



Main Specs:

  • Travel:  39.37″ x 45.276″ x 27.559″
  • Spindle:  HSK63A – 15,000 RPM
  • Tool Capacity:  30 / 46 / 92
  • Machine Weight:  27,116 lbs









Features



Mikron HPM machines are intended for the universal production of high-quality parts with 3, 4 or 5 axes. State-of-the-arte motor-spindles, direct drive round and swivelling axes and the solid machine body offer the very best conditions hand in hand with modern tools to achieve precise and economical production.





Mikron HPM 1150U Machine Specifications





Travel X, Y, Z 39.37″ x 45.276″ x 27.559″
Swiveling Axis Tilting Axis +16/-120º / n x 360º
Feed Rate / Rapid Traverse X, Y, Z  15/30 m / min
Tool Magazine 30 / 46 / 92
Clamping Surface ∅39.37″
Control Unit – Heidenhain iTNC 530
