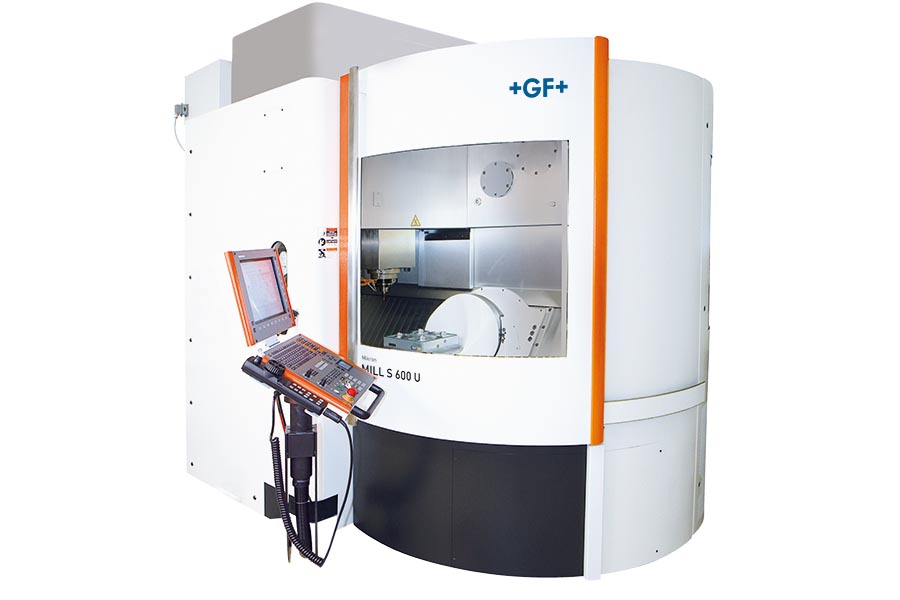

Vertical Machining Center – 5-Axis High Precision – High Speed
The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron’s MILL S range all have been designed with high speed machining in mind.
The machines from the Mikron MILL S series are real high performance machining centers. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways. The result is outstanding product quality and short processing times.
|Travel X, Y, Z||31.496″ x 23.622″ x 19.685″|
|C-Axis||n x 360°|
|Rapid Traverse X, Y, Z||61 m / min|
|Rapid traverse (swiveling, rotating)||60/150 RPM|
|Tool Magazine||HSK-E40 – 18 / 36 / 68 / 168 / 308
HSK-E50 – 15 / 30 / 60 / 120 / 170 / 220
|Control Unit – Heidenhain||iTNC 530 HSCI|
