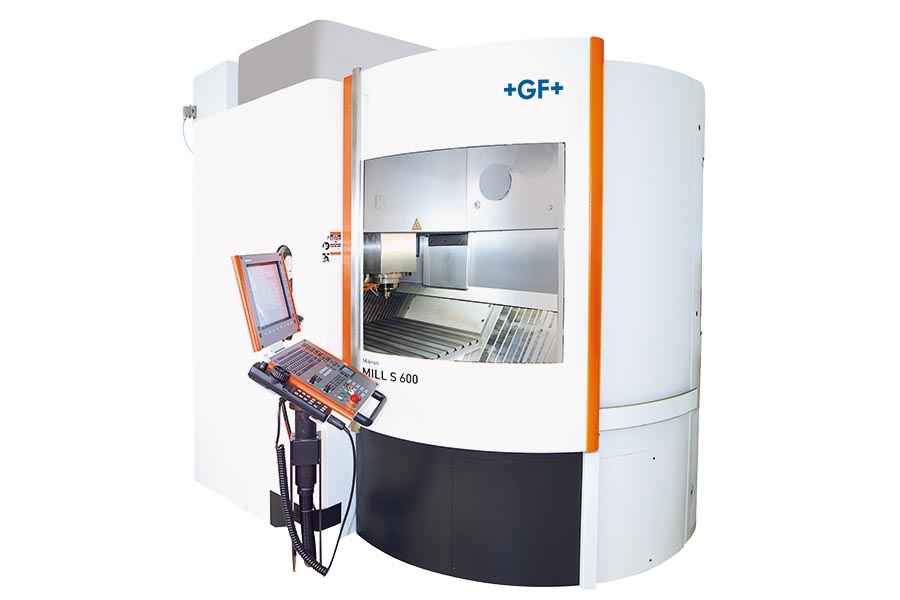

Mikron Mill S 600

Vertical Machining Center – 3-Axis High Precision – High Speed

The high speed spindles, the control system, the feed drives, the axis mechanism and the automation of Mikron’s MILL S range all have been designed with high speed machining in mind.



Main Specs:

  • Travel:  23.622″ x 23.622″ x 19.685″
  • Spindle:
    • HSK-E40 – 42,000 RPM
    • HSK-E50 – 36,000 RPM
    • HSK-E50 – 30,000 RPM
  • Tool Capacity:
    • HSK-E40 – 18 / 36 / 68 / 168 / 308
    • HSK-E50 –  15 / 30 / 60 / 120 / 170 / 220









Features



The machines from the Mikron MILL S series are real high performance machining centers. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous high-speed machining. The linear axes are supported by linear-roller-guide ways. The result is outstanding product quality and short processing times.





Mikron Mill S 600 Machine Specifications





Travel X, Y, Z 23.622″ x 23.622″ x 19.685″
B-Axis n/a
C-Axis n/a
Rapid Traverse X, Y, Z 61 m / min
Rapid traverse (swiveling, rotating) n/a
Tool Magazine HSK-E40 – 18 / 36 / 68 / 168 / 308
HSK-E50 –  15 / 30 / 60 / 120 / 170 / 220
Control Unit – Heidenhain iTNC 530 HSCI
