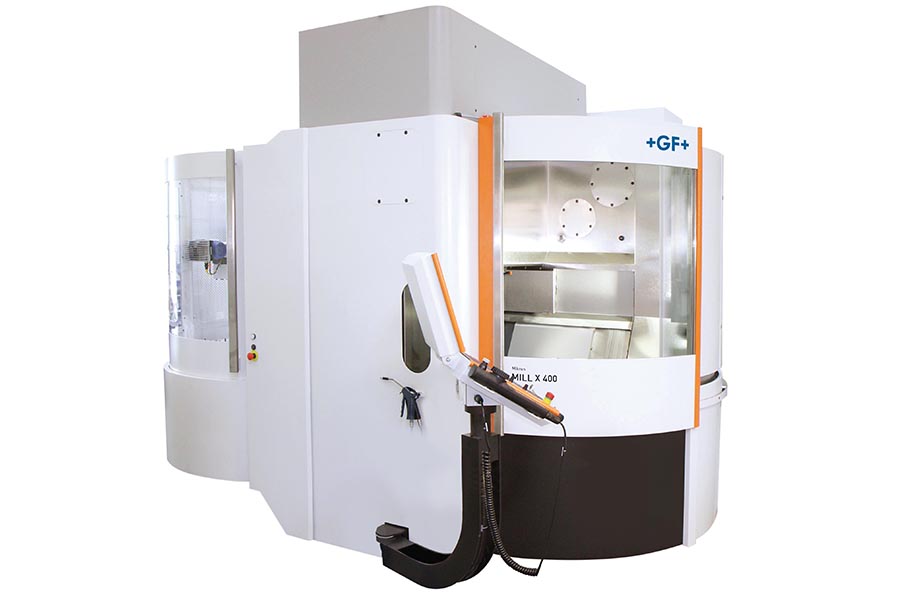

Mikron Mill X 400

Vertical Machining Center – 3-Axis High Precision – Ultra High Speed

Original design, high-quality components, digital drive technology and the most rapid control system in the world – everything on the Mikron MILL X is designed for optimum dynamics and maximum efficiency and functionality. A pioneering process control system makes it easy for the user to utilize the machine to its performance limits and, thereby, to increase productivity.



Main Specs:

  • Travel:  19.685″ x 17.716″ x 14.173″
  • Spindle:  HSK40 – 42,000 RPM
  • Tool Capacity:  18 / 36 / 68 / 168 / 308









Features



The machines from the Mikron MILL X series are extremely fast machining centers, highly appreciated in serial production of a variety of precision parts. For optimal absorption of machining and dynamically generated mass energy, the portal design is realized with a polymer concrete base supporting weight optimized and highly stiff cast iron sliding carriages. All axes are powered by direct drives to enable fully simultaneous ultra-high-speed machining.





Mikron Mill X 400 Machine Specifications





Travel X, Y, Z 19.685″ x 17.716″ x 14.173″
B-Axis n/a
C-Axis n/a
Rapid Traverse X, Y, Z 100 m / min
Rapid traverse (swiveling, rotating) n/a
Tool Magazine 18 / 36 / 68 / 168 / 308
Control Unit – Heidenhain iTNC 530 HSCI
