Toyoda FA1050S 5-Axis

Horizontal Machining Center – High Power Boxway – 5-Axis

High Power Boxway Horizontal Machining Centers, FA Series

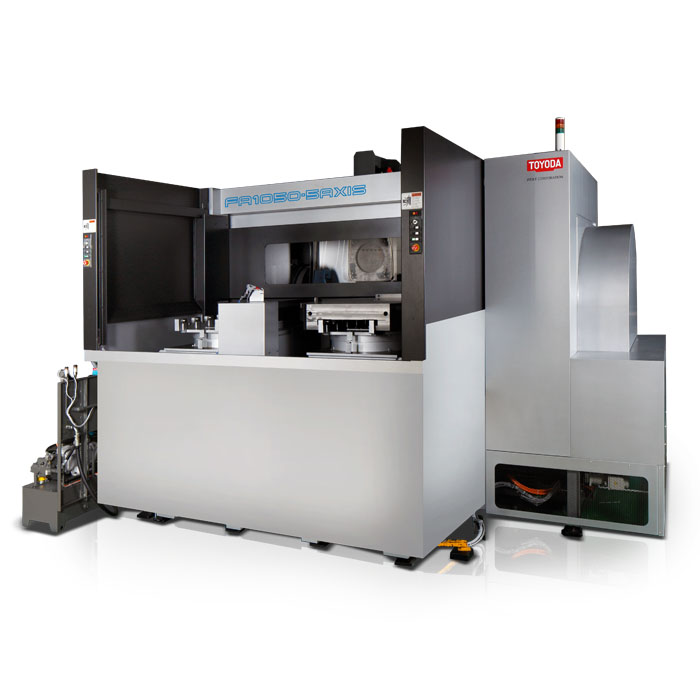

The FA1050S 5-Axis is a heavy-duty 5-Axis horizontal machining center featuring a 6,000 RPM direct-drive spindle, with options of a 6,000 RPM geared-head spindle or 15,000 RPM spindle, and a rapid feedrate of 590 ipm(X Axis) and 944 ipm (Y & Z Axes). The machine’s box guideways, robust column and bed, and large workpiece swing allow for powerful machining with high accuracy.



Main Specs:

  • Travel:  59.1″ x 55.1″ x 45.2″
  • Pallet Size:  41.3″ x 41.3″
  • Spindle Options:  60 HP 6,000 RPM, 50 HP 8,000 RPM, 50 HP 15,000 RPM
  • Tool Capacity:  60 Standard (190, 240, 384 options) CAT50
  • Machine Weight:  112,435 lbs

Features



  • FANUC 31iMB5 CNC Machine Control

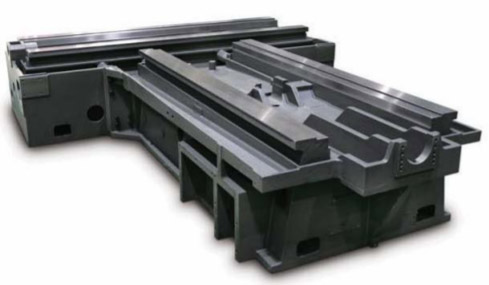

  • FCD600 Cast Iron Base and Column for unsurpassed Vibration Dampening
  • Y Type Shuttle Side by Side Style Pallet Changer with Operator Platform
  • Core-Cooled Double Lead Ball Screws
  • Dual Z-Axis and Y-Axis Ball Screws to Support Heavy Cutting Conditions
  • Six Spindle Carriage Guide Trucks Provide Unsurpassed Cutting Support
  • Machine Weight of 112,435 lbs Engineered with FEM Analysis to Reduce Vibration
  • Robust Full Contact Table Clamping Plate with Dual Cylinder Actuation

  • Triple Through Chip Removal Designed for Efficient Chip Management
  • 360,000 Positioning Rotary Indexing Table – 4th Axis
  • Center Through Chip Removal Designed for Highly Efficient Chip Management
  • Coolant-Thru-Spindle System: 300 PSI
  • Toyoda’s Removable Spindle Taper
  • 12 Months Parts and Labor Warranty (24 months Control and Drives)



Toyoda FA1050S 5-Axis Machine Specifications



 Travel
X-Axis 59.1″
Y-Axis 55.1″
Z-Axis 45.2″
Trunnion Table Index Increment (A Axis) 0.001º (-100º ~ +15º)
Trunnion Table Index Increment (B Axis) 0.001º
Spindle Nose to Rotary Table Center 7.87″ – 80.7″
Spindle Center to Top Face of Pallet 3.9″ – 66.9″
Table
Pallet Size 41.3″ x 41.3″
Max Load on Pallet 11,000 lbs
NC Table (4th Axis) 360,000 Positions

 Spindle
Spindle Type Direct Drive/Gear
Spindle Motor & Speed 60 – 6,000 RPM

50 – 8,000 RPM

50 – 15,000 RPM
Coolant Thru Spindle 300 PSI
Spindle Taper CAT50
Feed Rate
Rapid Traverse (X/Y/Z) 944/590/590 ipm

 ATC
Capacity 60 Tools (190, 240, 384 options)
Max. Tool Diameter 4.72″ Cylindrical
Max. Tool Length 26.59″
Chip to Chip ATC Time 4.0 seconds
Requirements
Air Pressure 5 CFM 56-70 PSI
Power Consumption 71 KVA
Machine Net Weight 112,435 lbs
Operating Dimensions 284.6″ x 317.7″
