Toyoda FA1050S

Horizontal Machining Center – High Power Boxway

High Power Boxway Horizontal Machining Centers, FA Series

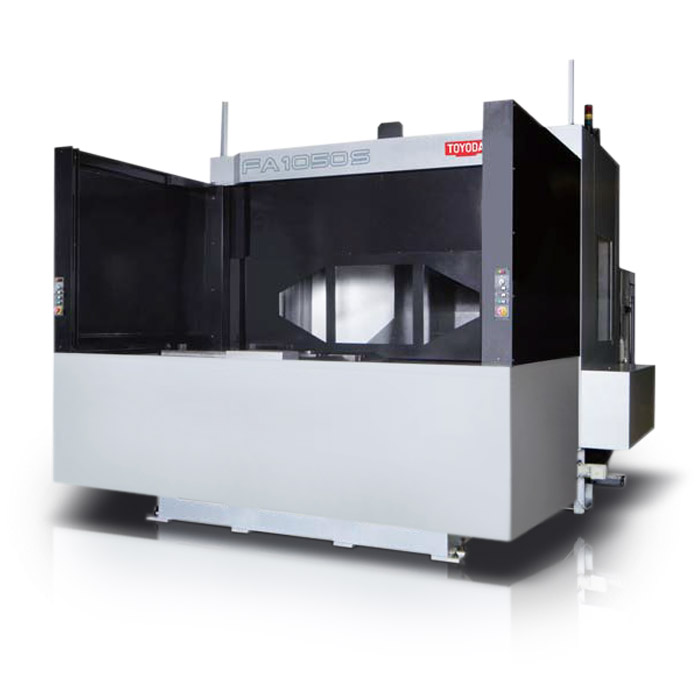

The FA1050S is a heavy-duty horizontal machining center featuring a 6,000 RPM direct-drive spindle, with options of a 6,000 RPM geared-head spindle or 15,000 RPM spindle, and a rapid feedrate of 944 ipm (24 m/min). The machine’s box guideways, robust column and bed, and large workpiece swing allow for powerful machining with high accuracy.



Main Specs:

  • Travel:  63.0″ x 55.1″ x 45.2″
  • Pallet Size:  41.3″ x 41.3″
  • Spindle Options:  60 HP 6,000 RPM, 50 HP 8,000 RPM, 50 HP 15,000 RPM
  • Tool Capacity:  60 Standard (120, 190, 240 options) CAT50
  • Machine Weight:  76,200 lbs



Features



  • FANUC 31iMA CNC Machine Control
  • FCD600 Cast Iron Base and Column for unsurpassed Vibration Dampening
  • Heavy Duty Box Guideway Machine Construction in All Machining Axes
  • Dual Y-Axis Ball Screws to Support Heavy Cutting Conditions
  • Overhead Style ATC System with Simple Swing Arm Type Tool Change
  • Side by Side Shuttle Type Pallet Exchange System with Vertical Door Enclosure

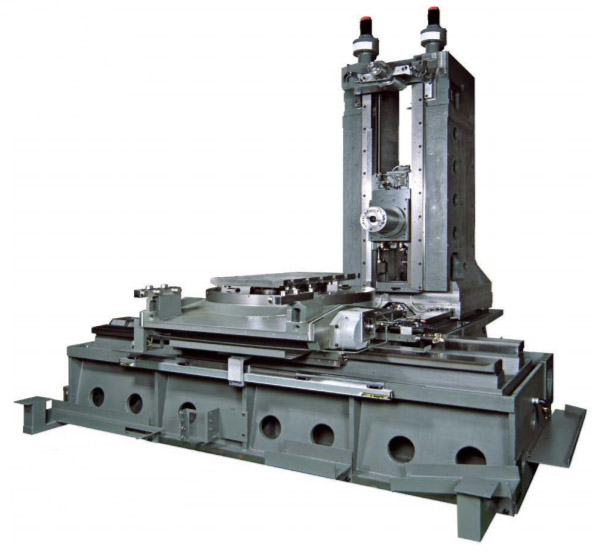

  • Machine Weight of 76,200lbs Engineered with FEM Analysis to Reduce Vibration
  • Robust Full Contact Table Clamping Plate with Dual Cylinder Actuation

  • Side Discharge Type Chip Removal Design for Efficient Chip Management
  • One Degree (1°) Positioning Rotary Indexing Table
  • Center Through Chip Removal Designed for Highly Efficient Chip Management
  • Coolant-Thru-Spindle System: 300 PSI
  • Toyoda’s Removable Spindle Taper
  • 12 Months Parts and Labor Warranty (24 months Control and Drives)



Toyoda FA1050S Machine Specifications



 Travel
X-Axis 63.0″
Y-Axis 55.1″
Z-Axis 45.2″
Spindle Gauge Line 7.9″ – 53.1″
Spindle Center to Top Face of Pallet 2.0″ – 47.2″
Table
Pallet Size 41.3″ x 41.3″
Max Load 6,600 lbs
NC Table (4th Axis) 1º

 Spindle
Spindle Type Direct Drive/Gear
Spindle Motor & Speed 60 – 6,000 RPM

50 – 8,000 RPM

50 – 15,000 RPM
Coolant Thru Spindle 300 PSI
Spindle Taper CAT50
Feed Rate
Rapid Traverse (X/Y/Z) 944 ipm

 ATC
Capacity 60 Tools (120, 190, 240 options)
Max. Tool Diameter 10.63″ Cyl. / 15.75″ Boring
Max. Tool Length 31.5″
Tool to Tool ATC Time 2.0 seconds
Requirements
Air Pressure 5 CFM 56-70 PSI
Power Consumption 79 KVA
Machine Net Weight 76,200 lbs
Operating Dimensions 321″ x 215″ x 161″
