Toyoda FH1250SX

Horizontal Machining Center – High Performance, High Speed

High Performance, High Speed Horizontal Machining Center, FH-SX Series

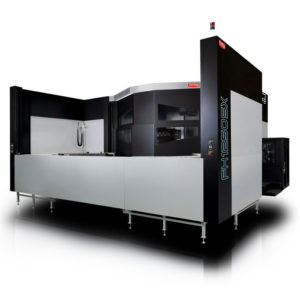

The FH1250SX is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 1,654 ipm (42 m/min). This machine has cylindrical roller guides for increased speed, and dual ballscrew drive on the Y and Z axes and a Meehanite cast iron base for maximum rigidity.



Main Specs:

  • Travel:  86.6″ x 63.0″ x 72.8″
  • Pallet Size:  49.2″ x 49.2″
  • Spindle Options:  60 HP 6,000 RPM, 50 HP 8,000 RPM, 50 HP 15,000 RPM
  • Tool Capacity:  60 Standard (121 option) CAT50
  • Machine Weight:  105,600 lbs



Features



  • FANUC 31iMA CNC Machine Control

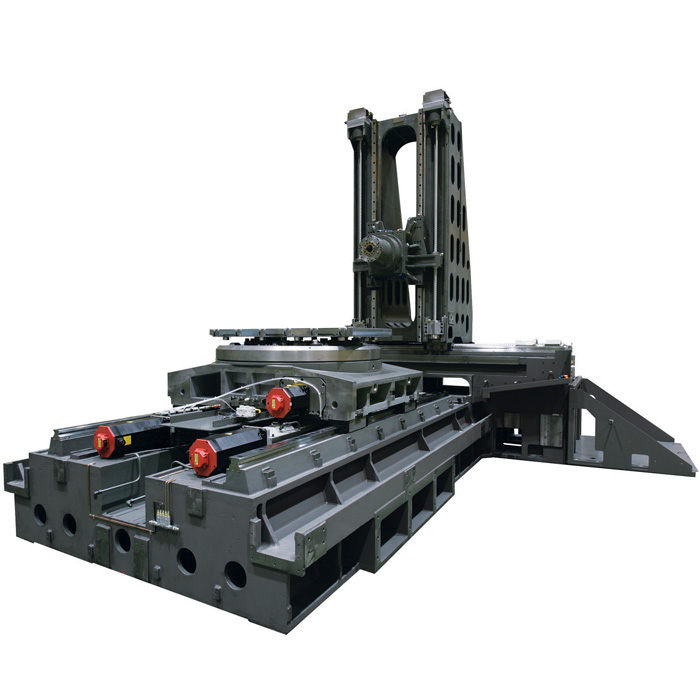

  • FCD600 Cast Iron Base and Column for unsurpassed Vibration Dampening
  • Y Type Shuttle – Side by Side Style Pallet Changer with Operator Platform
  • Core-Cooled Double Lead Ball Screws in All 5 Machine Ball Screws
  • Dual Z-Axis and Y-Axis Ball Screws to Support Heavy Cutting Conditions
  • Six Spindle Carriage Guide Trucks Provide unsurpassed Cutting Support
  • Machine Weight of 105,600lbs Engineered with FEM Analysis to Reduce Vibration
  • Robust Full Contact Table Clamping Plate with Dual Cylinder Actuation

  • Full NC table (360,000 positions)
  • Triple Through Chip Removal Designed for Highly Efficient Chip Management
  • Coolant-Thru-Spindle System: 300 PSI
  • Toyoda’s patented bearing preload allows machines to begin cutting when they are turned on – no warm-up time required. This same technology allows our machines to run 24/7, without worrying about overheating during production.
  • Automatic Way Lube System
  • 12 Months Parts and Labor Warranty (24 months Control and Drives)



Toyoda FH1250SX Machine Specifications



 Travel
X-Axis 86.6″
Y-Axis 63.0″
Z-Axis 72.8″
Spindle Nose to Rotary Table Center 7.87″ – 80.7″
Spindle Center to Top Face of Pallet 3.9″ – 66.9″
Table
Pallet Size 49.2″ x 49.2″
Max Load 11,000 lbs
NC Table (4th Axis) 360,000 Positions

 Spindle
Spindle Type Direct Drive/Gear
Spindle Motor & Speed (HP – RPM) 60 – 6,000 RPM

50 – 8,000 RPM

50 – 15,000 RPM
Coolant Thru Spindle 300 PSI
Spindle Taper CAT50
Feed Rate
Rapid Traverse (X/Y/Z) 1,654 ipm

 ATC
Capacity 60 Tools (121 option)
Max. Tool Diameter 13.8″
Max. Tool Length 31.5″
Tool to Tool ATC Time 2.7 seconds
Requirements
Air Pressure 5 CFM 56-70 PSI
Power Consumption 79 KVA
Machine Net Weight 105,600 lbs
Operating Dimensions 382″ x 258″ x 178″
