Toyoda FH450S

Horizontal Machining Center – High Performance, High Speed

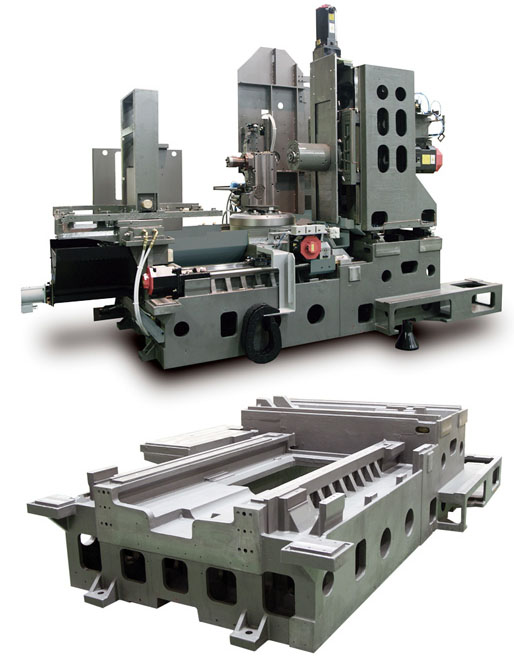

High Performance, High Speed Horizontal Machining Center, FH-S Series



The FH450S is a high-speed horizontal machining center featuring a 15,000 RPM spindle, tool-to-tool cycle time of 1.3 seconds, and a rapid feedrate of 1,968 ipm (50 m/min).



Main Specs:

  • Travel:  23.62″ x 23.62″ x 23.62″
  • Pallet Size:  17.7″  17.7″
  • Spindle:  15,000 RPM, 123 ft/lbs
  • Tool Capacity:  60 Standard (120 option) CAT40
  • Machine Weight:  25,300 lbs

Features



  • 325 Gallon, Isolated Re-Circulating Coolant Supply Unit with Drag Flight, Take up Chip Conveyor (Including 230 Gallon Main Coolant Reservoir With Two (2) Coolant Pumps).
  • Automatic Air Blow Spindle Nose Cleaner
  • Automatic Centralized Lubricator
  • Automatic Pallet Changer with Two (2) Bolt Hole Pattern Pallets
  • Automatic Power Shut Off
  • Automatic Spindle Orientation
  • Chip Wash Coolant
  • Coolant thru the Spindle for 15,000 RPM Spindle (a Third Pump, [9 GPM @300 PSI Capacity] and a Small Centrifugal Filter, 20 GPM @ 20 Micron and a Filter Supply Pump is Added to the System).
  • Cycle End Alarm Lamp
  • Fanuc 31i MA CNC Control
  • Hydraulic Power Unit
  • Installation Accessories
  • Parts Counter (LCD Display)
  • Run Hour Display (LCD Display)

  • Spindle and Axis Load Meter (LCD Display)
  • Spindle Oil Cooling Unit
  • Spindle RPM Meter (LCD Display)
  • Splash Guard
  • Work Area Lamp
  • Full NC table (360,000 positions)
  • Coolant Through the Spindle 435 PSI
  • Easy Machine Installation Process with Pre-Pinned Integrated Coolant Tank
  • Center Through Chip Removal Designed for Highly Efficient Chip Management
  • Toyoda’s patented bearing preload allows machines to begin cutting when they are turned on – no warm-up time required. This same technology allows our machines to run 24/7, without worrying about overheating during production.
  • Automatic Way Lube System
  • 12 Months Parts and Labor Warranty (24 months Control and Drives)



Toyoda FH450S Machine Specifications



 Travel
X-Axis 23.62″
Y-Axis 23.62″
Z-Axis 23.62″
Max. Workpiece Swing ∅ 24.8″ x 39.0″
Table
Pallet Size 17.7″ x 17.7″
Max Load 880 lbs
NC Table (4th Axis) 360,000 Positions

 Spindle
Spindle Type Direct Drive
Spindle Speed 15,000 RPM
Spindle Torque 123 ft/lbs
Spindle Motor 30 HP
Coolant Thru Spindle 300 PSI
Spindle Taper CAT40
Feed Rate
Rapid Traverse (X/Y/Z) 1,968 ipm

 ATC
Capacity 60 Tools (120 option)
Max. Tool Diameter 7.08″ Cyl. / 9.84″ Boring
Max. Tool Length 13.78″
Chip to Chip ATC Time 2.7 seconds
Requirements
Air Pressure 5 CFM 56-70 PSI
Power Consumption 51 KVA
Machine Net Weight 25,300 lbs
Operating Dimensions 98.4″ x 211″
