Toyoda FH550SX

Horizontal Machining Center – High Performance, High Speed

High Performance, High Speed Horizontal Machining Center, FH-SX Series



The FH550SX is a powerful, high-speed horizontal machining center featuring an 8,000 RPM high-torque spindle, with an option of 15,000 RPM spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.



Main Specs:

  • Travel:  29.52″ x 31.5″ x 33.45″
  • Pallet Size:  21.65″ x 21.65″
  • Spindle Options:  30 HP 15,000 RPM, 50 HP 8,000 RPM, 50 HP 15,000 RPM
  • Tool Capacity:  60 Standard (121 option) CAT50
  • Machine Weight:  41,000 lbs

Features



  • FANUC 31iMA CNC Machine Control
  • FCD600 Cast Iron Base and Column for unsurpassed Vibration Dampening
  • Solid-Core Double Lead Ball Screws with Active Thermal Compensation
  • Three Point Machine Leveling for Long Lasting Machine Geometry
  • Six Spindle Carriage Guide Trucks Provide unsurpassed Cutting Support
  • Industry Best 2” Z Axis Dead Band Allows for Tool Length Reduction
  • Machine Weight of 41,000lbs Engineered with FEM Analysis to Reduce Vibration
  • Robust Full Contact Table Clamping Plate with Dual Cylinder Actuation
  • 55mm Wide Roller Guides and 50mm Diameter Dual Lead X-Axis Ball Screw

  • Full NC table (360,000 positions)
  • Center Through Chip Removal Designed for Highly Efficient Chip Management
  • Coolant-Thru-Spindle System: 300 PSI
  • Toyoda’s patented bearing preload allows machines to begin cutting when they are turned on – no warm-up time required. This same technology allows our machines to run 24/7, without worrying about overheating during production.
  • Automatic Way Lube System
  • 12 Months Parts and Labor Warranty (24 months Control and Drives)



Toyoda FH550SX Machine Specifications



 Travel
X-Axis 29.52″
Y-Axis 31.5″
Z-Axis 33.46″
Max. Workpiece Swing ∅ 33.46″ x 45.0″
Table
Pallet Size 21.65″ x 21.65″
Max Load 1,760 lbs
NC Table (4th Axis) 360,000 Positions

 Spindle
Spindle Type Belt/Direct Drive/Gear
Spindle Speed 15,000 RPM / 6,000 RPM
Spindle Motor 30 / 50 HP
Coolant Thru Spindle 300 PSI
Spindle Taper CAT50
Feed Rate
Rapid Traverse (X/Y/Z) 2,362 ipm

 ATC
Capacity 60 Tools (121 option)
Max. Tool Diameter 9.84″ Cyl. / 12.59″ Boring
Max. Tool Length 21.5″
Chip to Chip ATC Time 3.7 / 4.0 / 5.0 seconds
Requirements
Air Pressure 5 CFM 56-70 PSI
Power Consumption 54 KVA
Machine Net Weight 41,000 lbs
Operating Dimensions 130″ x 260″

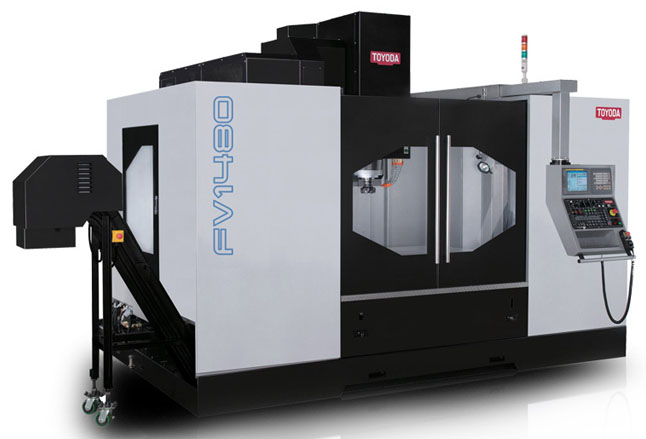

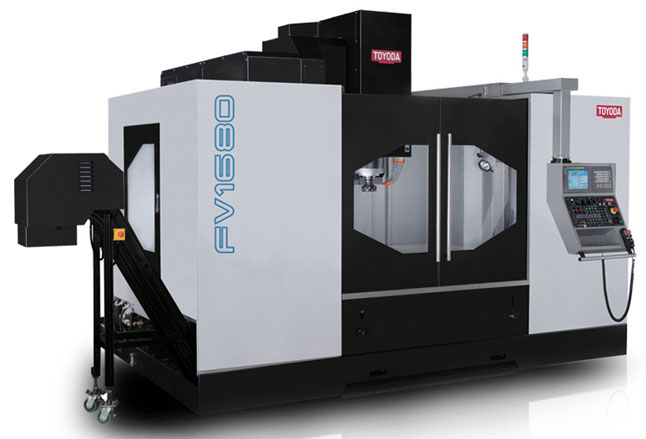

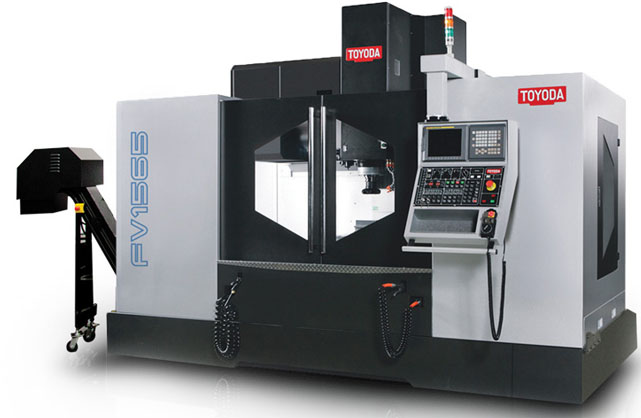

Related Machines
