Toyoda FV1365
Vertical Machining Center – Heavy Duty Box Ways
Box Ways, Heavy Duty Vertical Machining Center, FV Series
The FV1365 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.
Main Specs:
- Travel: 51.2″ x 25.6″ x 23.6″
- Table Size: 57.1″ x 25.6″
- Spindle Options: CAT 40 – 8,000 RPM, CAT50 – 6,000 RPM
- Tool Capacity: CAT40 – 32 Standard (40 option), CAT50 – 30 Standard (40 option)
- Machine Weight: 16,755 lbs
Features
PEAK-PERFORMANCE SPINDLES – Toyoda’s vertical lineup features spindles with oversized bearings and a true-geared headstock design. This increased stability ensures high machining performance.
IN FOR THE LONG HAUL – Hand scraping on all 56 metal-to-metal points of contact – including the ball nut mount and spindle nose – ensure accuracy for years to come.

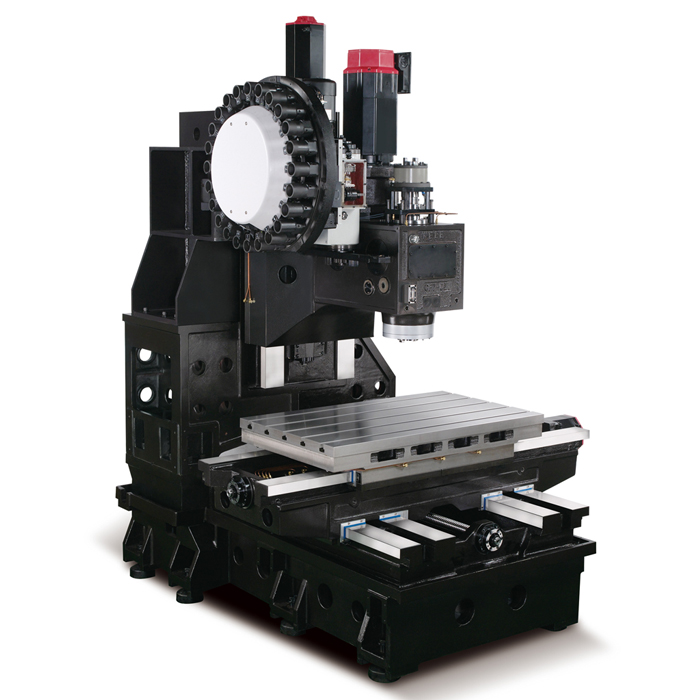

STRUCTURALLY SOUND – A solid Meehanite cast iron base combines with a four-boxway design in the Y axis to maximize vibration-dampening capabilities and provide the structural rigidity needed for heavy cutting.
- FANUC 0iMD CNC Machine Control
- 4th Axis Preparation (Excluding Drive Unit)
- Chip Wash Down Coolant
- Chip Wash Gun
- Conversational FANUC Manual Guide i
- Coolant System including tank & pumps
- Coolant thru the Spindle (300 psi) including additional tank
- Dual Chip Auger Each Side of Table
- Foundation and Leveling Kit
- Full Enclosure Splash Guard
- Gear-Driven Spindle (25 hp)
- Helical Interpolation
- Lift Up Type Hinged Bent Chip Conveyor (47″)
- Manual Pulse Generator (Hand Wheel)
- Programmable Air Blast
- Rigid Tapping
- RS-232 Interface and Ethernet RJ45 Interface
- Spindle Oil Cooler
- CT40: Thirty-two (32) ATC or CT50: Thirty (30) ATC
- Three (3) Tier Status / Alarm Lamp
- Work Light
- 12 Months Parts and Labor Warranty on Machine and Control
Toyoda FV1365 Machine Specifications
| Travel | |
| X-Axis | 51.2″ |
| Y-Axis | 25.6″ |
| Z-Axis | 23.6″ |
| Spindle Nose to Table Top | 4.9″ – 28.5″ |
| Table | |
| Dimensions | 57.1″ x 25.6″ |
| Max Load | 2,866 lbs |
| T-Slots | 5 x 0.71″ x 4.92″ |
| Spindle | |
| Spindle Type | 2 Speed Gear |
| Spindle Motor & Speed | 25 – 8,000 RPM
25 – 6,000 RPM |
| Spindle Torque | 339 ft/lbs |
| Coolant Thru Spindle | 300 PSI |
| Spindle Taper | CAT40 or CAT50 |
| Feed Rate | |
| Rapid Traverse (X/Y/Z) | 1,181/1,181/945 ipm |
| ATC | |
| Capacity | CAT40 – 32 Tools (40 option)
CAT50 – 30 Tools (40 option) |
| Max. Tool Diameter (CAT40/50) | 2.99″/5.00″ |
| Max. Tool Length (CAT40/50) | 9.8″/11.8″ |
| Tool to Tool ATC Time | 3 seconds |
| Requirements | |
| Air Pressure | 5 CFM 100 PSI |
| Power Consumption | 35 KVA |
| Machine Net Weight | 16,755 lbs |
| Operating Dimensions | 186.5″ x 160.2″ x 115.7″ |
